C6 Corvette Radiator Fan Control Switch - RPIDesigns.com
Item Details
C6 Corvette Radiator Fan Control Switch
Item Name:
C6 Corvette Radiator Fan Control Switch
Item #:
RP102159
Price
$99.95  $94.95
Average Rating:

Product Image Gallery
Quantity:

C6 Corvette Fan Control Switch

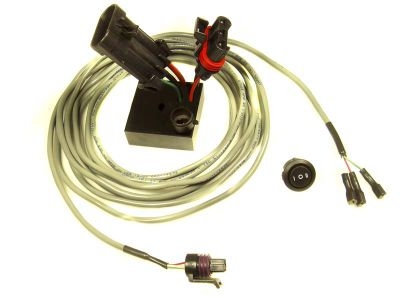

This brand new Plug-And-Play control module installs under the hood, at the fan connector, and is designed to manually control the PWM coolant fan found on the 2005-2009 C6, Z06 and ZR1 Corvette. When the need arises to manually cool the radiator down, this module gives you complete control of the fan with the simple flick of a switch. This kit can be installed in less then one hour, once you decide on where you want to place the control switch. This switch matches the style and look of cockpit switches used on all the C6 Corvettes.

Comes with easy to follow installation instructions.

Installation instructions shown below...

The switch wiring can be installed easily, without the need to cut a hole in the firewall. The wiring can be fed thru the upper door jamb, driver or passenger side, and hidden under the weatherstrip door seal into the passenger compartment. The location of the switch can be anywhere desired. First, locate the fan connector on the passenger side, near the bottom of the fan shroud. Unplug the connector and insert the enclosed module into the connection being sure the connectors are fully seated. The module can simply hang there on the connectors. You can now run the switch harness from the module to the passenger compartment location where you want the switch positioned. Start by plugging the round connector into the receptacle in the module. Next, select a location for the switch. You will need to cut a 20mm hole (approximately 11/16”) into the panel you wish to insert the switch. Once you have installed the switch, run the wiring from the harness and insert the three female connectors as shown in the switch wiring detail below. Note RED wire is common, BLACK wire is High, GREEN wire is Low, and RED wire is Common +12V:

Once the switch wire connectors are attached, you are ready to go. Keep the switch in the center (O) “NORMAL” position for normal ECU fan control. Press the (I) to manually run the coolant fan on low, or the (II) to manually run it on high. Remember, manual control of the fan will make it run without the key in the ignition so be aware that you might kill your battery if left on for long periods of time. NOTE: There may be a coolant fan code set while the switch is in manual control, which will go away when switched back to normal mode.

INSTALLING THE OPTIONAL SWITCHPLATE

1. There are Torx head screws holding on the lower panel directly under the C6 steering wheel. Remove the furthest right hand screw using a Torx T15 driver. 2. Route the fan control wiring to the right hand side of the foot well to the area near the switch plate mounting area. 3. Push the round fan control switch into the switch plate through the front of the plate and rotate the switch to adjust for the appropriate switch orientation. 4. Connect the wires as per the installation instructions. 5. Insert the Torx screw through the bottom of the switch plate and tighten until plate is secure. The hole is oversized so you can move and slightly wedge the switch plate behind the vent as seen inn the picture. This will make the switch plate more rigid. 6. Test the function of the switch and plate. Tighten the screw if necessary to secure the switch plate. Two finger operation of the switch may be necessary using your thumb and index finger.
A very popular modification is C6 Corvette Radiator Fan Control Switch
Item Reviews
This item has not been reviewed yet. Be the first to write a review!

Write a Review
