2008-2014 Dodge Challenger Sequential Tail Lights Kit - RPIDesigns.com
Item Details
2008-2014 Dodge Challenger Sequential Tail Lights Kit
Item Name:
2008-2014 Dodge Challenger Sequential Tail Lights Kit
Item #:
CHLSTL6
Price
$149.99
Average Rating:

Product Image Gallery
Quantity:

2008-2014 Dodge Challenger Sequential Taillights Kit

(2011 - 2014 Dodge Challenger Models require cutting)

These 2008-2014 Dodge Challenger sequential taillight kits are sure to raise your Challenger to a new level.  These 2008-2014 Dodge Challenger sequential taillight kits will convert the taillights on your 2008-2014 Dodge Challenger into Sequential Turn Signals.  This Challenger sequential tail light kit contains pre-wired, plug-in harnesses that install with no wire cutting or splicing of any kind!

These harnesses feature sophisticated electronics that automatically adjust the sequencing speed to match the turn signal flasher in your car.  While other products offer you fixed timing or complicated manual adjustments, our electronics sense your Challenger's flasher speed and adjust the sequence timing for you.



2008-2014 Dodge Challenger Sequential Tail Lights Kit

These lights will fit any 2008-2014 Dodge Challenger, including SE, R/T and SRT8.

Installation Instructions:

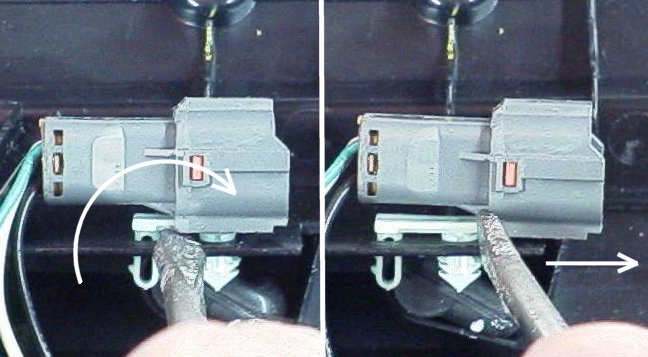

Some 2011+ Challengers have a trunk release button under the spoiler. If your car has this, you will need to move one wire and cut/splice one ground wire from your OEM harness to the new tail light harness. Follow the instructions for the 08-10 Challenger, and take these additional steps: 16) Remove the connector from the panel using a large screwdriver. Press lightly as shown and twist. The connector will slide off leaving the retainer in the fixture. Dodge Challenger Sequential turn signals taillights

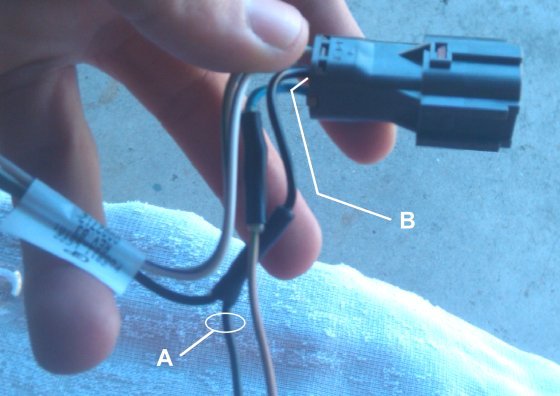

16A) Refer to the pictures below. Cut the BLACK/GREEN wire coming from the trunk switch. 16B) Using a small screwdriver, remove the brown wire retainer from the connector on the OEM harness.

2014 Dodge Challenger Sequential tail lamps

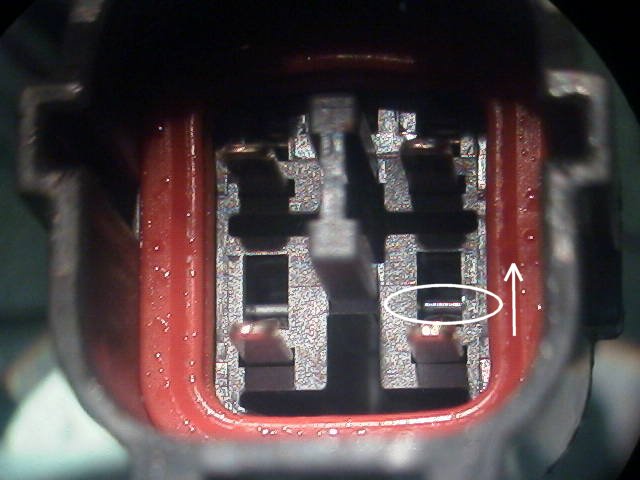

16C) Insert a small screwdriver at the terminal side to release the TAN/GREEN wire. Replace the retainer above.

2012 Dodge Challenger Sequential tail lamps

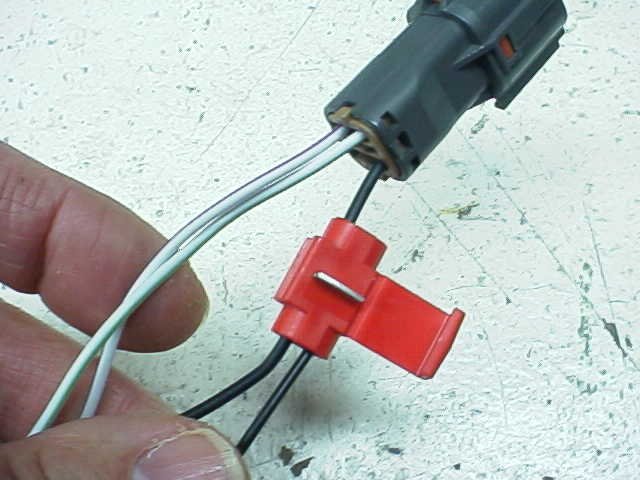

16D Find the new Tail Light Harness (Part A). Using the supplied quick- splice, connect the BLACK/GREEN switch wire to the BLACK wire on the new harness. Using a pair of pliers, squeeze the metal tab on the quick- splice until it is flush with the connector body. Then fold the cover over.

2011 Dodge Challenger Sequential tail lamps

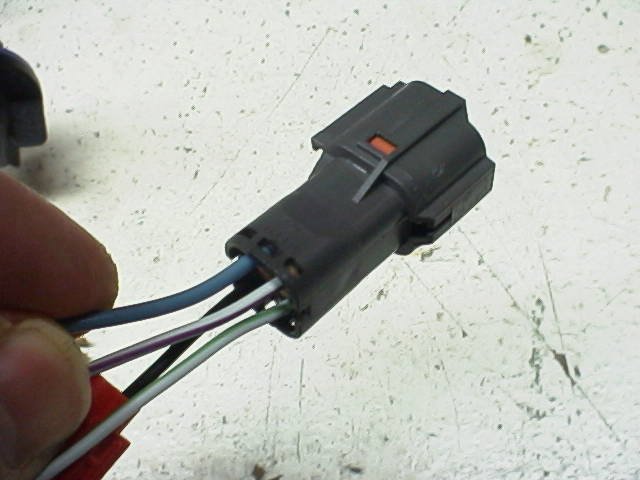

16E) Remove the brown wire retainer from the 4-pin connector. Remove the dummy plug that's in the connector. Insert the TAN/GREEN wire from the trunk switch into the hole of the new harness. Replace the brown retainer.

2009 Dodge Challenger Sequential tail lamps taillights

Once you have completed these steps, go back to the 2008-2010 instructions and continue at Step 17.

We feel these Dodge Challenger Sequential turn signal taillights are the best exterior modification you can make.



Fitment: 2008, 2009, 2010, 2011, 2012, 2013, 2014 Dodge Challenger

A nice addition to your Challenger is the 2008-2014 Dodge Challenger Sequential Tail Lights Kit from RPI Designs.
