C5/C6/C7/C8 Corvette Stingray Parts & Accessories, 2010-2015 Camaro, 2016-2019 6th Generation Camaro and 2015-2019 Ford Mustang

Painted Parts are painted to order and take additional time, right now we are about a 4-5 week lead time. Please keep this in mind.

C7 Corvette aFe Control PFADT Series Stage 2 Suspension Package AC-520401002N - RPIDesigns.com
Item Details
C7 Corvette aFe Control PFADT Series Stage 2 Suspension Package
Item Name:
C7 Corvette aFe Control PFADT Series Stage 2 Suspension Package
Item #:
AC-520401002-ND
Price
$4,118.00  $3,459.00
Average Rating:

Product Image Gallery
Quantity:

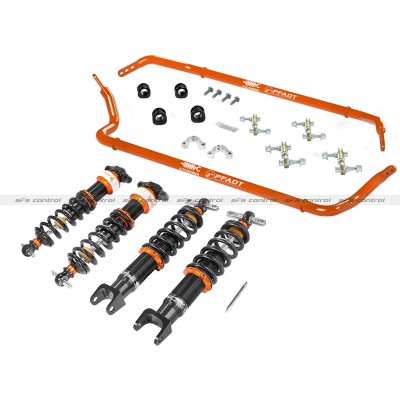

2014-2019 C7 Corvette aFe Control PFADT Series Stage 2 Suspension Package;  AC-520401002N

aFe Control is proud to introduce the PFADT Series Stage 2 Package for the 2014-2019 Chevrolet C7 Corvette. This package features adjustable coil overs and sway bars designed to provide your C7 Corvette with racecar level road holding ability, and the street-ability you would expect from your daily driver. Both ride height and damping are easily adjustable in this design allowing for fine tuning your Corvette’s stance and ride quality.

The coil overs are precision CNC machined from 6061-T6 Aluminum hard anodized, while the mono-tube construction utilizes a floating piston to separate the oil, and nitrogen gas, allowing for predictable handling, and a consistent feel. The inverted monotube front coil-overs feature the CIRC (Concentric Integrated Remote Canister) System more than triples the gas volume over a standard coil overs and houses the BOA (Ball on Axis) upper mount, allowing full articulation of the Corvettes suspension offering a durable, quiet mounting solution without travel loss.

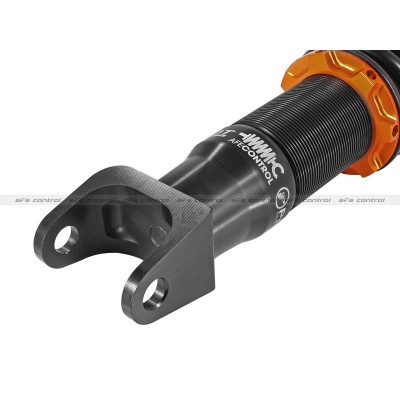

In the rear, the coil over uses an aerospace grade mono ball with a 17-4PH stainless steel cross shaft and a lightweight CNC-milled 6061-T6 clevis to attach directly to the OE mounting points for simplicity and strength. The adjuster knob is on the top of the assembly for ease of use. Since the coil overs employ double digressive valve technology, the easy touch, rotary knobs will adjust compression and rebound with 24 distinct settings from one device.

To further reduce body roll and improve handling, the Stage 2 package includes tubular alloy steel sway bars with polyurethane bushings, heavy duty end links and CNC machined rear brackets. This Stage 2 Package will make for a complete transformation in your Corvette C7’s performance, offering flatter, faster cornering, and added car control. Perfectly balanced, aFe Control products will have your Corvette handling just as good at the track as it will around town.

Features:


•  Featherlight coil overs are ride height adjustable, as well as damping adjustable for rebound and compression
• Lightweight, Hard Anodized 6061-T6 Aluminum bodies yield high strength while still maintaining a lightweight design
• Mono-Tube construction utilizes an internal floating piston to separate oil and gas allowing for more predictable handling, and a consistent feel

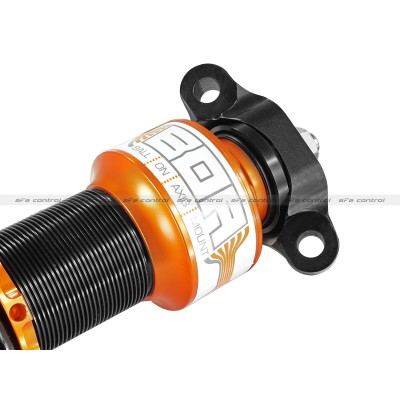

• BOA (Ball on Axis) front upper mount system is a completely sealed mono-ball design that allows full articulation resulting in a better ride and quiet operation

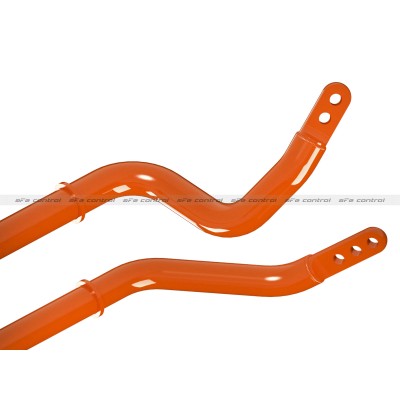

• CNC Bent, Tubular Alloy Steel 35mm 2-Way adjustable front and 31.75mm 3-Way adjustable rears way bars
• Polyurethane bushings and CNC machined 6061-T6 aluminum rear brackets
• Heavy duty, ½” Rod end links, and CNC machined articulation spacers
• Direct Fit Installation, Requires No Modifications.


Fitment: 2014, 2015, 2016, 2017, 2018, 2019 C7 Corvette, Z06 and Grand Sport

 C7 Corvette aFe Control PFADT Series Stage 2 Suspension Package;  AC-520401002N
C7 Corvette aFe Control PFADT Series Stage 2 Suspension Package AC-520401002N will enable you to tune your C7 Corvette's suspension.
