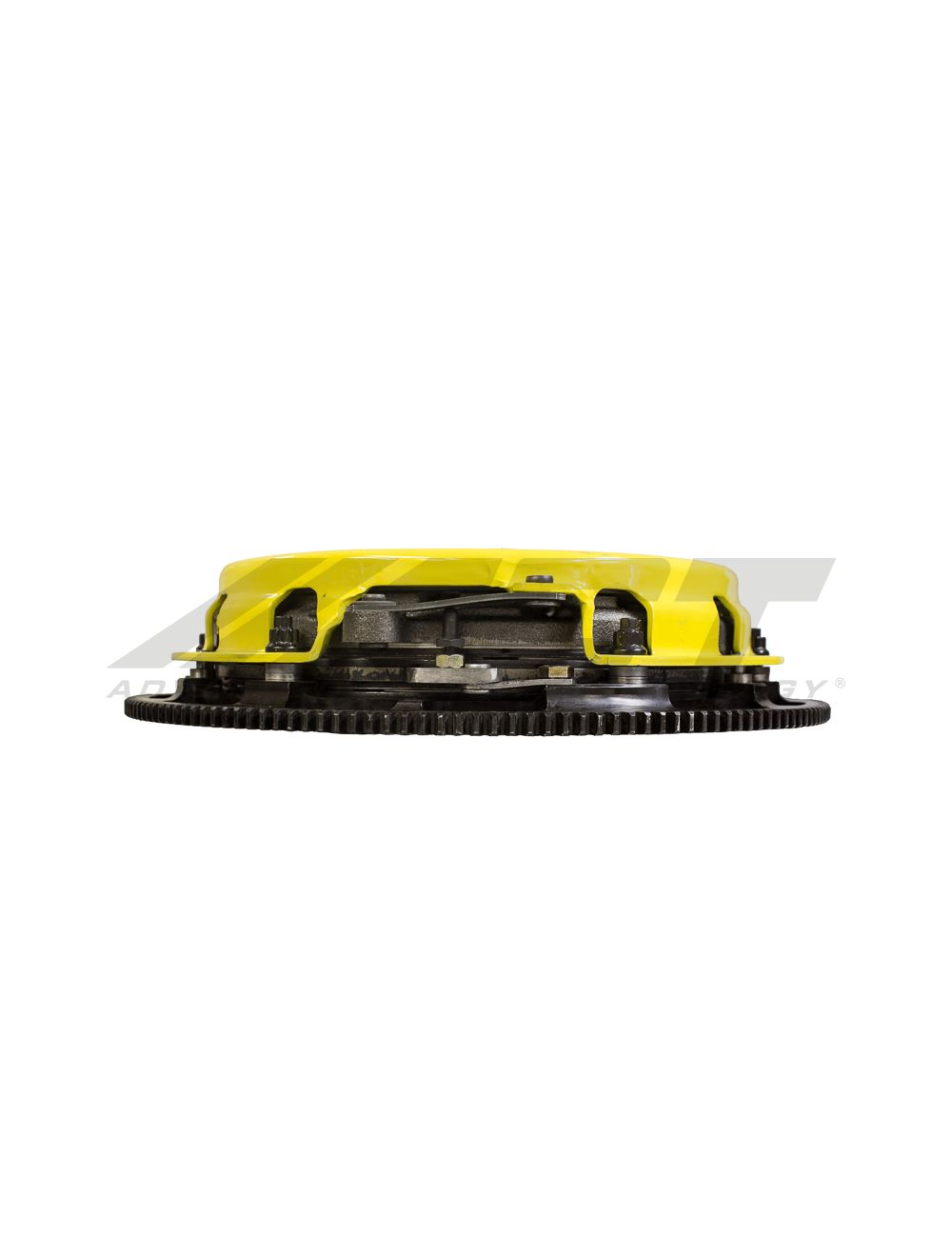

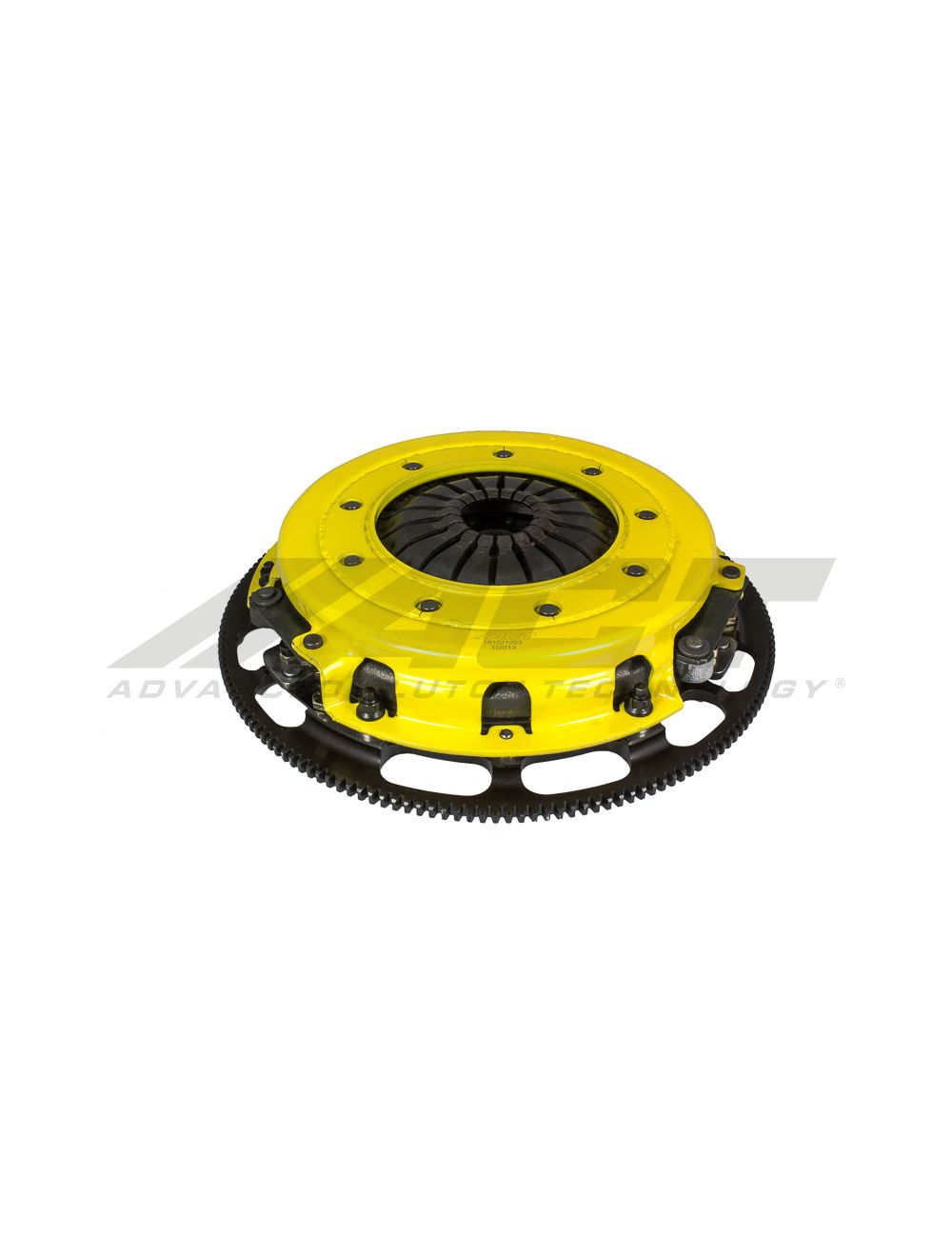

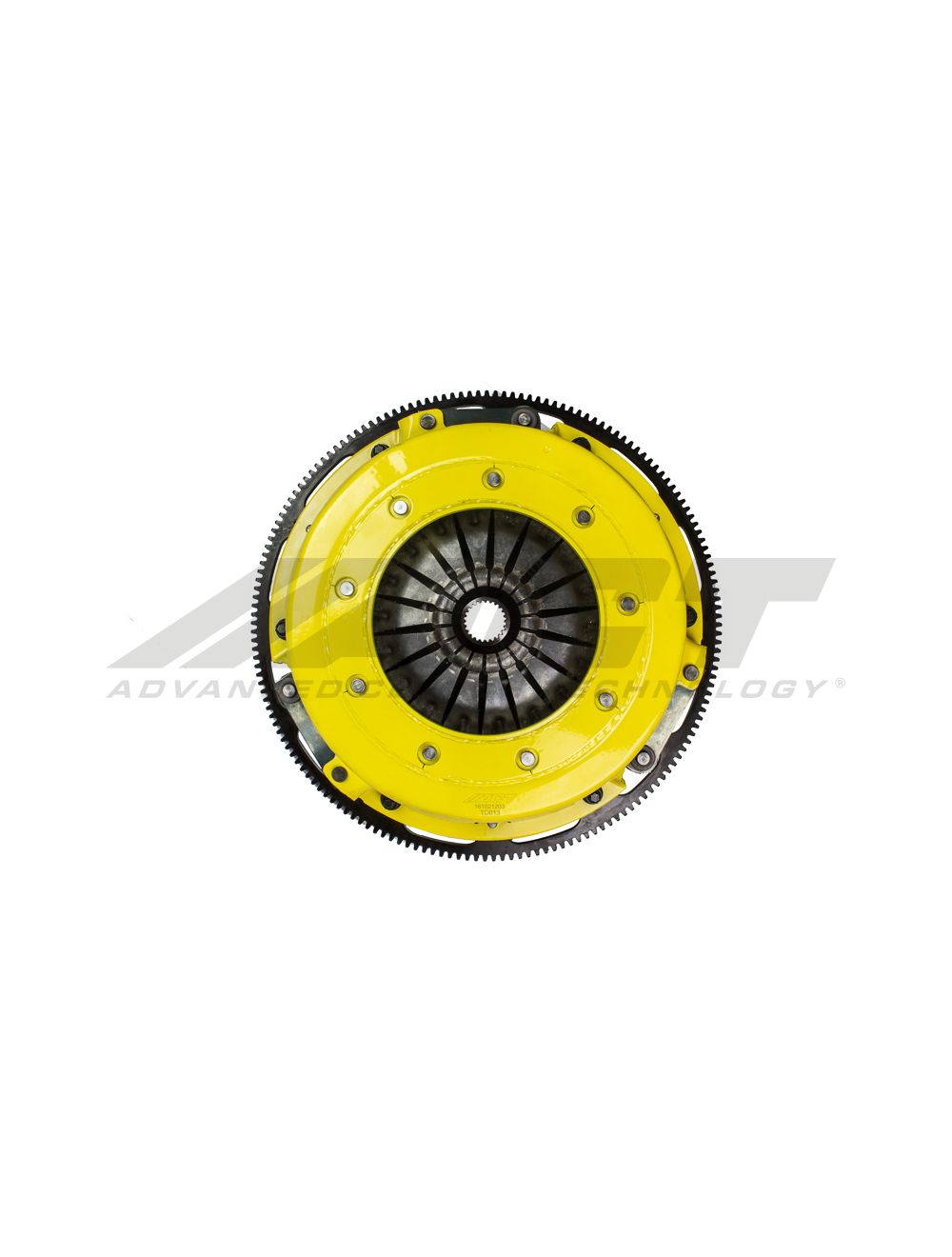

Camaro SS ACT T1S-G09 - Twin Disc HD Street Kit

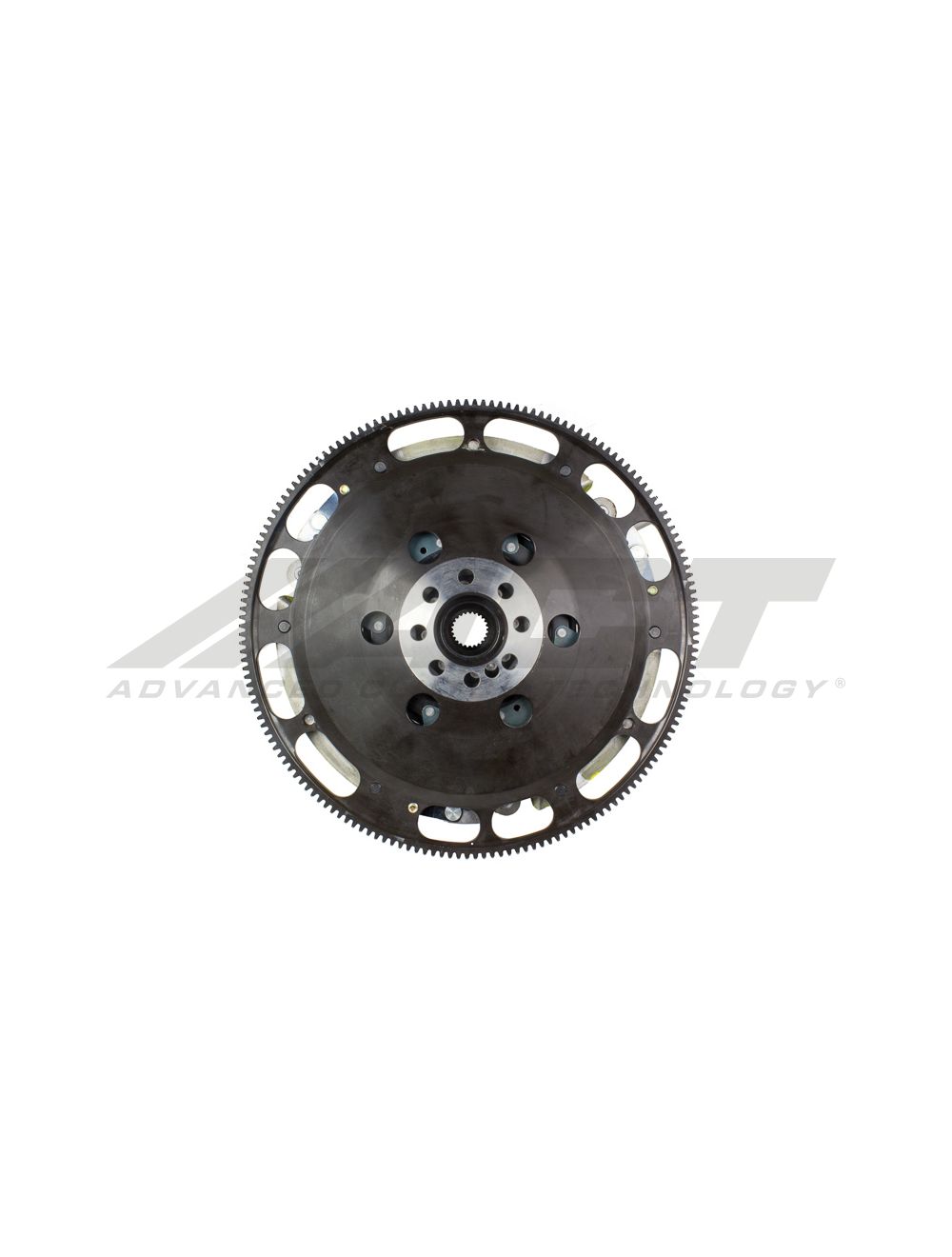

T1S-G09 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity, and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits feature the ability to adjust for disc wear and provide equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel, and an alignment tool. Some kits may include a pilot bearing and release bearing.
Specifications
Item Description: Twin Disc HD Street Kit
Product Weight (lbs.): 41.1
Torque Capacity (ft/lbs.): 891
Torque Capacity Over OE: 127%
Disc Material: Organic
Clutch Disc Diameter (Inches): 10.5
Clutch Disc Diameter (Millimeters): 267
Input Shaft Diameter (inches): 1.125
Warranty: 12 Months
Feel Light pedal effort, smooth engagement, OE to mild gear rattle
Life Disc surfaces doubled for better wear, heat capacity, and longer life, further extended by ACT's exclusive diaphragm design
Quality Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
Recommended Use Recommended for high horsepower street or race use
ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Fitment: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Chevrolet Camaro SS
