Camaro 6th Generation Stealth Splash Guards - RPIDesigns.com
Item Details
2016-2019 Camaro 6th Generation Splash Guards - Stealth
Item Name:
2016-2019 Camaro 6th Generation Splash Guards - Stealth
Item #:
CAM020
Price
$49.99
Average Rating:

Product Image Gallery
Item Options
Kit Selection
Premium Splash Guards
Item Price
Your Price:
$49.99
Quantity:

2016-2019 6th Generation Camaro Stealth Splash Guard Kit - Mud Flaps / Mud Guards

(Patent Pending Design)

This 2016-2019 Camaro splash guards kit includes four splash guards, two for the front wheels, two for the rear wheels. No drilling, glue or tape required. These 6th Generation Camaro splash guards use stock hole locations to mount in combination with provided clips. You can even install these without removing your wheels!

We now offer these splash guards in a thicker premium plastic that is nearly twice as thick as our regular splash guards for the ultimate in durability.



6th Generation Camaro Splash Guards / Mud Guards Installation:



  • The 2 front splash guards require the removal and re-installation of 1 push style pin per splash guard. We also include one "U" clip to secure the top of the flap. Installation is much easier if you turn your wheel to allow you to easily access the push style pin. Simply remove the pin with a flat screwdriver. You'll see a small notch in the pin, use the screwdriver to pop that loose. Then pull the rest of the pin out. The pin is actually a two piece unit.

  • Now place the splash guard into position, push the large part of the pin through the hole in the splash guard until flush with the fender liner.

  • Next take the rest of the pin and tap it into the large part of the pin which is now installed in your Camaro fender well.

  • Lastly, take one of the two “U” clips and install it near the top of the splash guard, burr to the back of the fender lip.

  • The 2 rear splash guards include new bolts that are slightly longer to accommodate the splash guard.

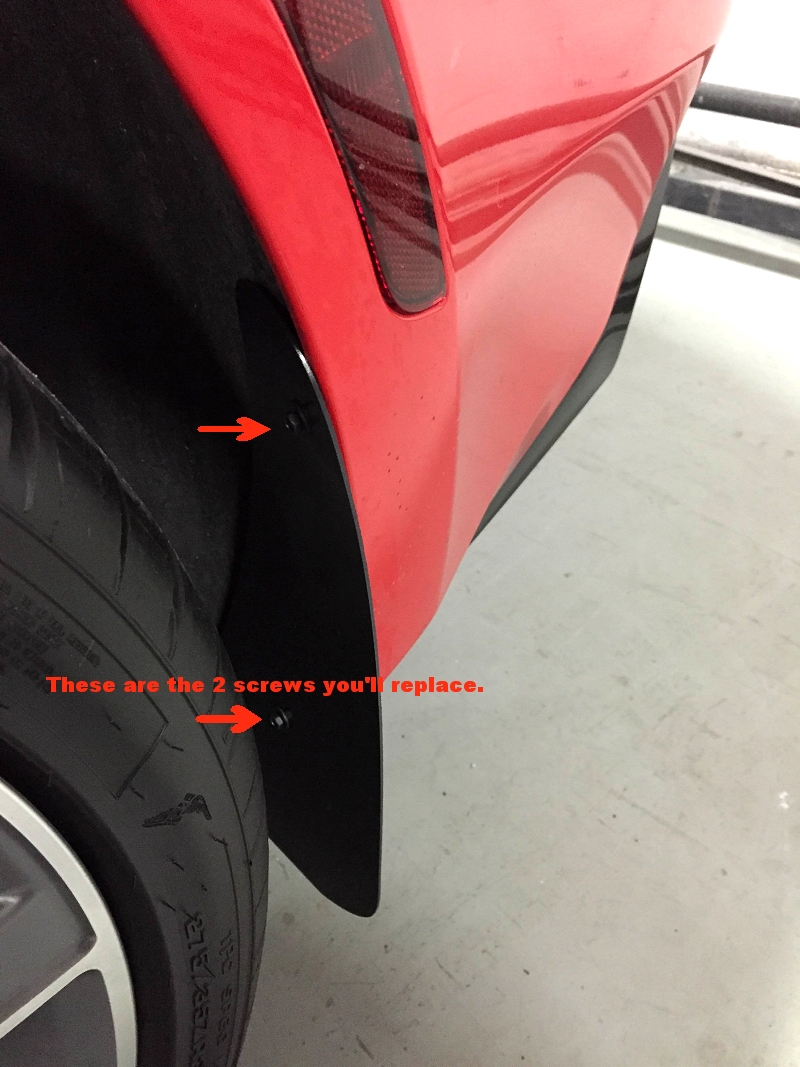

  • You'll remove the two bolts shown in the picture above and install the new bolts in their place. Use the provided Torx head wrench to remove the two bolts.

  • Put in the new bolts and tighten with a standard socket. Do not overtighten.

  • The rear splash guards have a block built into them to push them 1/4" away from the fender liner to create a sleek appearance.



These splash guards (mud flaps) are made for the 2016-2019 Camaro, they are not a universal splash guard kit. These were designed to follow the body lines of the Camaro and to remain almost unseen.

All hardware is included along with the proper screwdriver for a very simple installation. These Camaro splash guards / mud guards are also available pre-painted to match your Camaro. Please email us for more information.

Fitment: 2016, 2017, 2018, 2019 Chevrolet Camaro

2016-2017 6th Generation Camaro Stealth Splash Guard Kit - Mud Flaps / Mud Guards

Tired of cleaning mud and debris off your 6th Gen Camaro? Our no drill, stealth splash guards will protect your Camaro without drilling holes.
